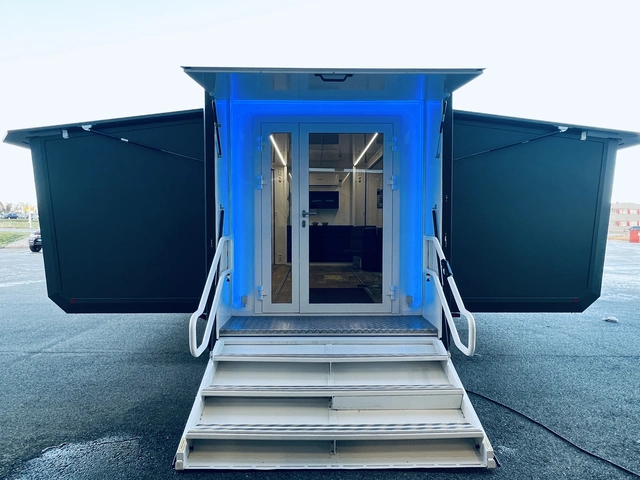

MOBILE FLEXMODUL XL TRAILER

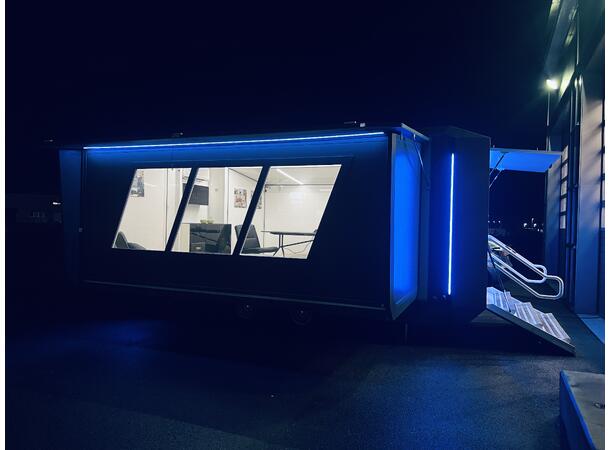

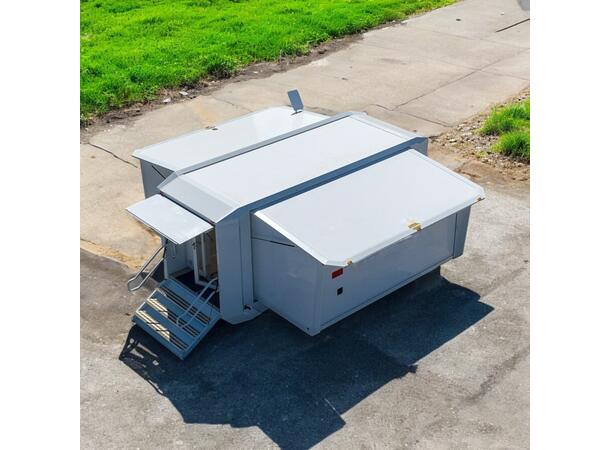

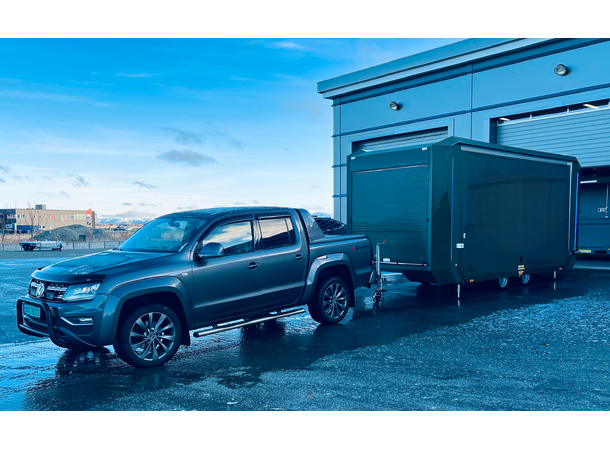

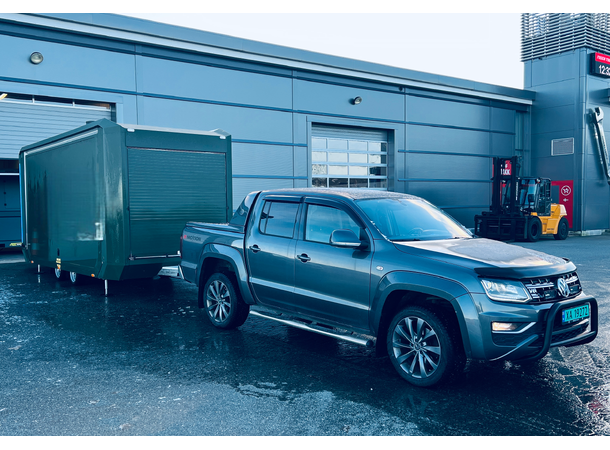

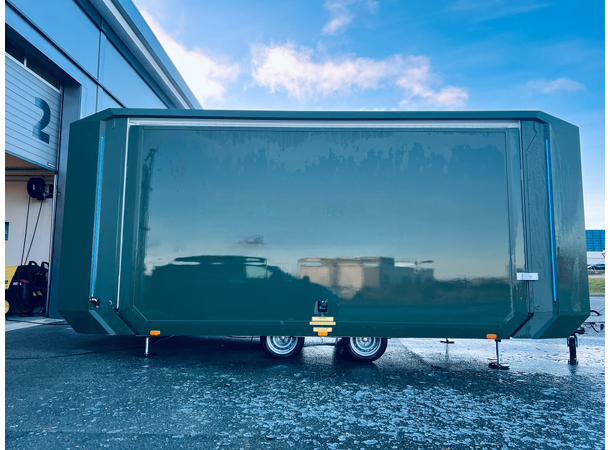

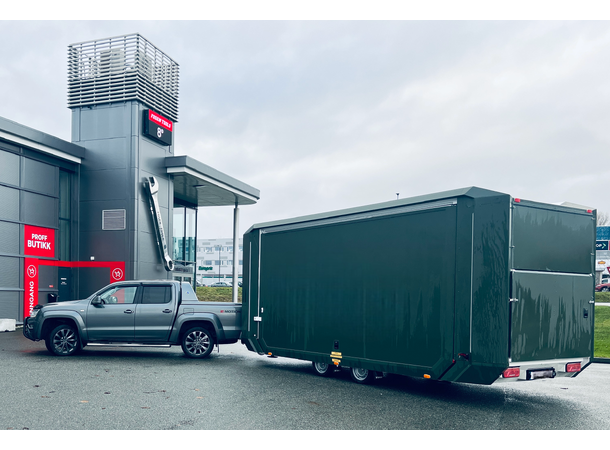

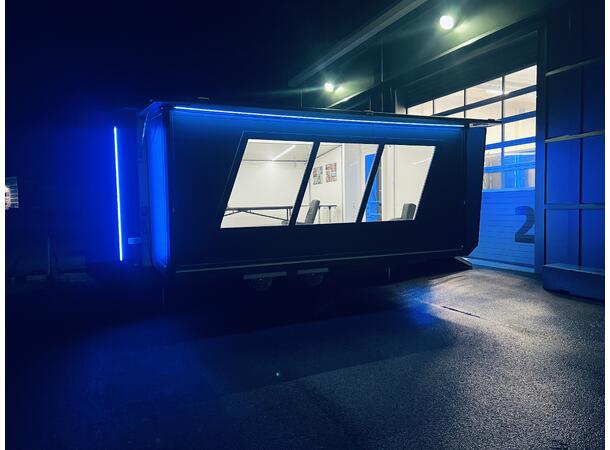

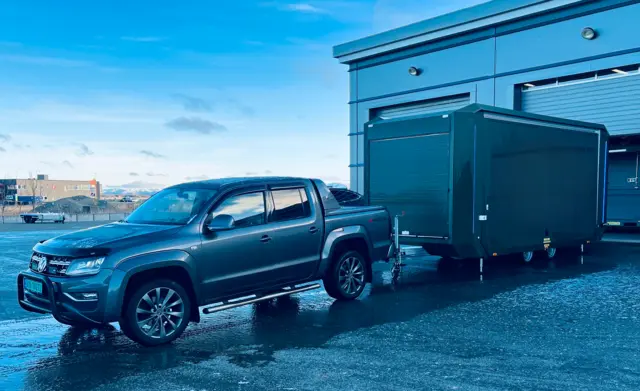

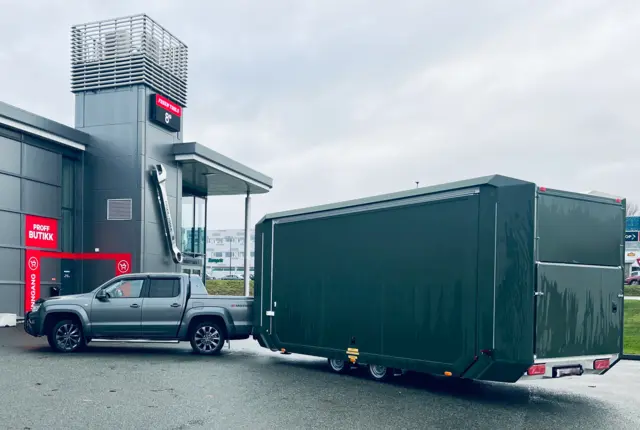

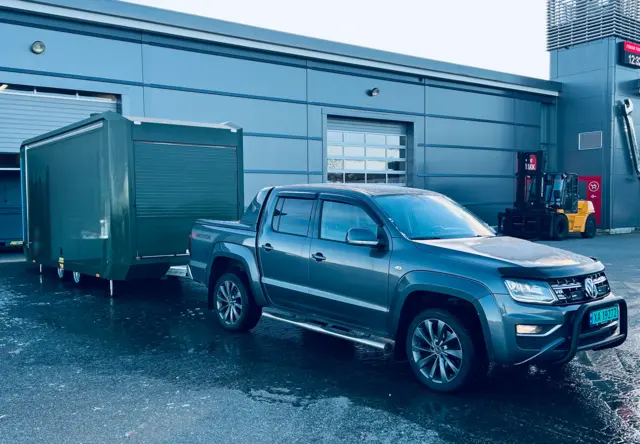

The Mobile FlexModul XL trailer is a full-size model offering an impressive 28 m² of space with a sleek, modern design – a 3 in 1 solution. It expands within minutes and can be operated with a BE license, easily towed by a van, large SUV, or pick-up truck. With a carrying capacity of 600-700 kg and 9 m² of storage space in transport mode, it is ideal for transporting equipment.
Flexible use in numerous segments - the possibilities are endless!
Trailer can be delivered as standard or custom built to your needs.
Specifications:
| Gross trailer weight: | 3500 kg |
| Tare weight of trailer: | 2800 kg |
| Total length of trailer: | 7200 mm |
| Total width of trailer: | 2300 mm |
| Platform surface area: | 5500 x 2300 mm (length x width) |
| Axis: | torsion 2 x brake (a ‘1800 kg) |
| Brakes: | 4 x drum brakes |
| Coupling head: | 60 mm ball attachment |
| Support legs: | 4 support legs in corners, height adjustable to max 356mm |

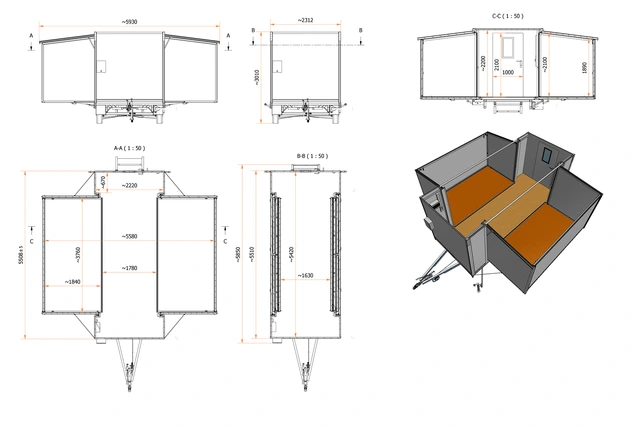

| Total length of shelter: | 5706 mm |
| Height of trailer: | 3000 mm |
| Insulation: | 50 mm |
| Width of shelter in transport: | 2312 mm |
| Width when opened: | 5852 mm |
| Floor area in transport: | approx. 9 m² |

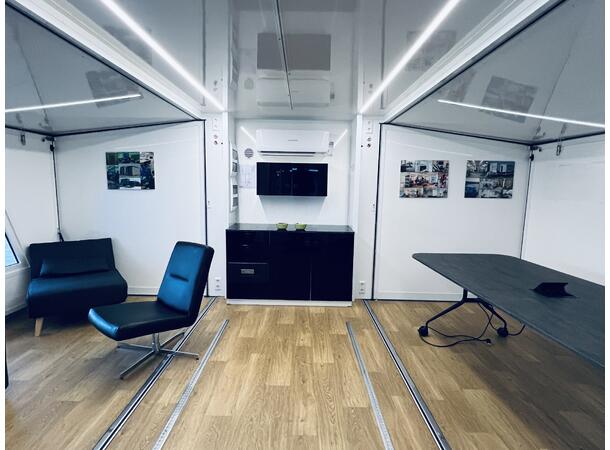

| Floor area when expanded: | approx 28 m² |
| Additional information: | 2 windows, lightweight stairs, aluminium external door with standard lock |
